Basic Operation:

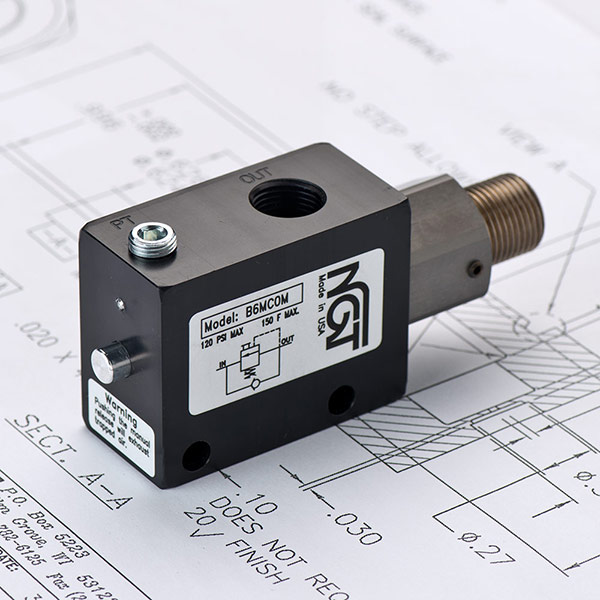

The counterbalance valve will hold a load in position until pressure or an external force is applied to move the load. Turning the adjusting screw clockwise will increase the load carrying capacity of the valve. Optional manual and flush manual release.

• Optional Manual Release
• .0000522 cc/min Leak Rate
• Adjustable Load Setting

Operating Data:

Max Pressure:

120 psi

Leak Rate:

.0000522 cubic cc/min

Temp. Range:

30 - 150 F

Cycle Rate:

1 cyc./sec.

Flow Capacity (Cv):

2.6

Cracking Pressure:

1-2 psi

Service:

Properly filtered dry air or lubricated air.

Product Specs: (Click to see a larger images)
